5 CBM 1.6 MPa Vertical Cryogenic Liquid Argon Storage Tanks

5 CBM 1.6 MPa Vertical Cryogenic Liquid Argon Storage Tanks

Looking for a robust and dependable solution for storing liquid argon? Our cryogenic liquid argon tanks are meticulously designed and manufactured to provide safe and efficient storage at extremely low temperatures.  These tanks are ideal for a wide range of industries, including:

• Welding and metal fabrication

• Semiconductor manufacturing

• Medical and pharmaceutical applications

• Research and development

Product Specifications: 5 CBM, 1.6 MPa Vertical Cryogenic Tank

Below are the key parameters for our 5 CBM vertical cryogenic tank, specifically designed for storing liquid oxygen (LO2), liquid nitrogen (LN2), and liquid argon (LAr):

• Storage Capacity:

• Total Volume: 5.6 m³ (1480 gallons)

• Effective Volume: 5.0 m³ (1321 gallons) – Optimized for practical use.

• Pressure Ratings:

• Design Pressure: 1.64 MPa (238 psi) – Engineered for safety margins.

• Working Pressure: 1.6 MPa (232 psi) – Ensures consistent performance.

• Dimensions:  Φ 2016 mm (diameter) x 5130 mm (height)

• Operating Temperature:

• Outer Cylinder Design Temperature: 60℃ (140°F)

• Inner Cylinder Design Temperature: -196℃ (-320.8°F) – Specifically designed for cryogenic conditions.

• Materials of Construction:

• Outer Jacket: Q245-R – High-strength, low-alloy steel for durability.

• Inner Tank: S30408 (304 Stainless Steel) – Austenitic stainless steel providing excellent corrosion resistance and ductility for cryogenic service.

• Insulation System: Vacuum powder insulation – Minimizes heat transfer for efficient cryogenic storage. This advanced insulation method ensures minimal liquid argon loss due to vaporization.

• Weight (Tare): Approximately 4610 KG (10163 lbs)

• Maximum Filling Rate: 0.95 – Allows for efficient filling while maintaining safety standards.

• Valve System: Equipped with high-grade Chinese valves, ensuring reliable operation and precise control.  Each valve is rigorously tested to meet our stringent quality standards.

• Lead Time: Typically within 60 days of receiving pre-payment. We strive to accommodate expedited delivery schedules whenever possible. (Subject to change based on current manufacturing workload)

• Payment Terms: Negotiable. We accept TT (Telegraphic Transfer) and LC (Letter of Credit) payments, among other options.  We are committed to finding a payment solution that works for your business.

• Comprehensive Documentation Package:

• Bill of Lading

• Commercial Invoice

• Detailed Packing List

• Contract (3 original copies)

• Product Quality Certification issued by the tank manufacturer

• Detailed Tank Drawing

• Calculation Sheet

• Comprehensive Operation Instructions

• Pressure Vessel Supervision Certificate (original) from the Pressure Vessel Supervision Institute

• Test Report (2 originals, 1 copy)

About HNJS: Your Trusted Cryogenic Storage Partner

We are a leading manufacturer specializing in liquefied gas storage tanks and related equipment. With a strong foundation of technical expertise, advanced mechanical equipment, and proven production technologies, we are committed to delivering high-quality cryogenic solutions.  Our comprehensive capabilities include:

• Pressure Vessel Manufacturing: Certified for manufacturing three types of pressure vessels, as well as designing and manufacturing types one and two.

• Rigorous Quality Control: We implement a scientific management system to ensure every product meets the highest standards of quality and reliability.

• User-Friendly Design: Our products are designed for ease of operation, simple adjustment, and consistent performance.

Our Extensive Product Portfolio Includes:

• Cryogenic Liquid Storage Tanks (Vertical and Horizontal)

• Large Flat Cryogenic Liquid Storage Tanks

• Cryogenic Liquid Pumps

• Air Bath Type Vaporizers

• Water Bath Vaporizers

• Gas Pressure Regulating Devices

• Non-Standard Pressure Vessels

Serving Diverse Industries:

We provide complete equipment and engineering solutions for a variety of industrial gas applications, including:

• Liquid Oxygen (LOX), Liquid Nitrogen (LN2), Liquid Argon (LAr), and Liquid Carbon Dioxide (LCO2) systems.

• LNG (Liquefied Natural Gas) refueling stations.

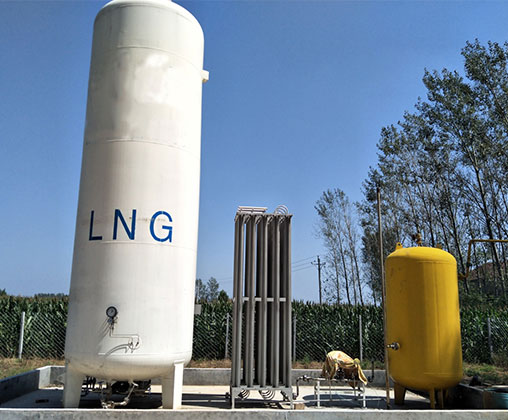

• LNG vaporizing stations.

• Carbon dioxide liquefaction projects.

Commitment to International Standards:

We are dedicated to expanding our presence in the global market. We have obtained all necessary domestic pressure vessel certifications and are actively pursuing ASME certification.

Why Choose Us?

• Quality Assurance: CE certified cryogenic liquid argon tanks.

• Experience and Expertise: Years of experience in cryogenic tank design and manufacturing.

• Custom Solutions: We can tailor our products to meet your specific requirements.

• Competitive Pricing: We offer exceptional value without compromising on quality.

Contact us today to discuss your cryogenic liquid argon storage needs. We are confident that we can provide you with the perfect solution for your application.
